Description

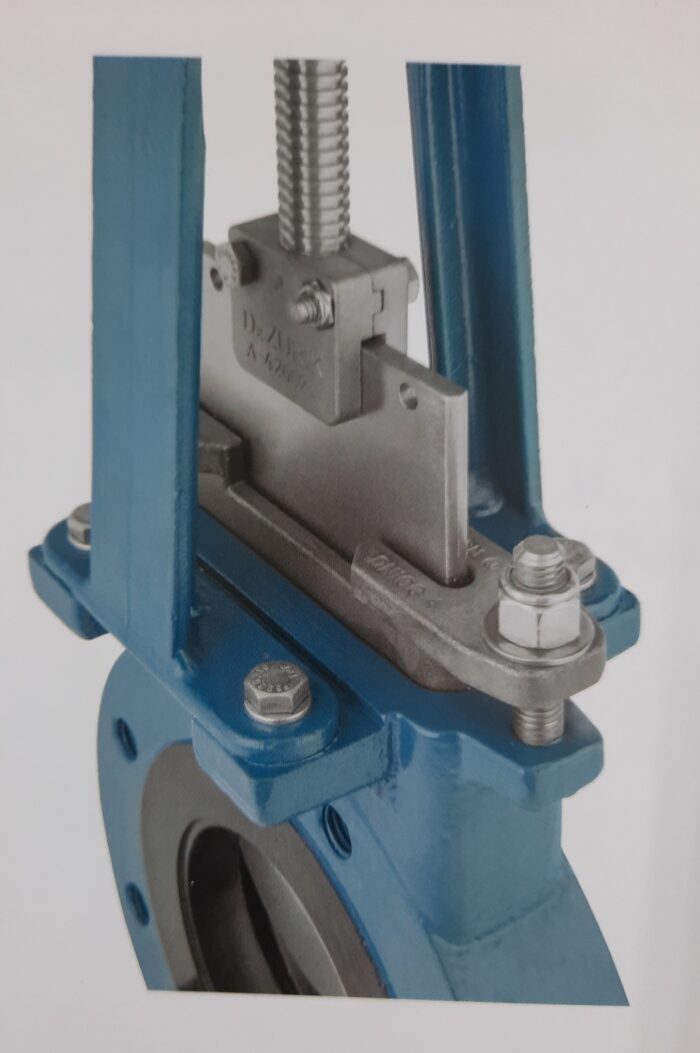

DeZurik KUL Urethane Lined Knife Gate Valves are designed for on-off applications of abrasive slurry and dry abrasive materials. Urethane lined KUL Knife Gate Valves are 100% port area and are ideally suited for applications in mining, chemical and food industries.  DeZurik KUL Knife Gate Valves feature a one piece cast-in place liner that provides bi-directional, drip tight shutoff to the full valve rating. All wetted surfaces of the ductile iron body are lined with urethane which prevents product hangup on the internal body of the valve. DeZurik KUL Knife Gate Valves can be used on dead-end service. To increase packing life, the gate edges and the ends of the packing chamber are rounded.

Size Range:  DeZurik KUL Knife Gate Valves are available in different sizes from 50mm to 1200mm.

Temperature Range:  -40 to 82 Degree C

Pressure Rating:   150psi

Body Materials:   Ductile Iron with Stainless Steel gate.

Actuator Type:   Hand-wheel, Bevel Gear, Pneumatic Cylinder, Hydraulic Cylinder and Electric Motor.
